Pumping Station "Cascade"
(Equipment / Material)
Model Number: КАСКАД1710001
Condition: New
Location or Storage Country: Russia
Service Engineering Support: Yes
Warranty: Yes
Price: Call for price
Description:
Electromash LLC produces complex pumping equipment – pumping stations “Cascade”. Pumping station “Cascade” with automated control system based on electric pump units and electric pumps of own production, is designed for pumping oil products with viscosity up to 10-4 m2/s (100 cSt) with solid suspended particles content in quantity not exceeding 0.2% and size not exceeding 0.2 mm, at ambient temperature from -40 to +50 оС. Upon separate order pumping stations “Cascade” are manufactured on the basis of any type of pumps: K, KM, KMS, D, CG etc. with corresponding permits, as well as HL version in heated block-box.
Overview:

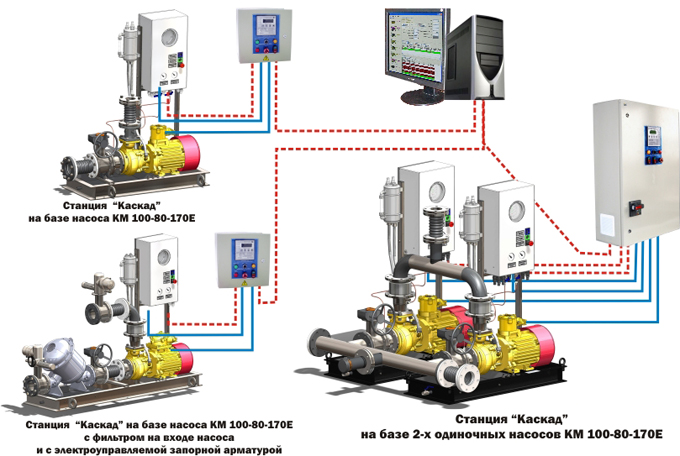

The pumping station "Cascade" consists of the following main components:
- pumping unit;
- field data collection controller;
- control cabinet for the "Cascade" station with a controller for controlling and protecting the pumping unit.
Our competitive advantages :
- providing diagnostics of the operation of the pumping unit and installed sensors;
- guarantee of full protection of the pump unit electric motor;
- remote control and diagnostics;
- intuitive user interface of both the cabinet controller and the personal computer software;
- text information on the LCD indicator of the control cabinet controller about the station status and possible malfunctions;
- manual operation mode - using the "Start" and "Stop" buttons from the control cabinet or from the pumping unit;
- remote operation mode - by external signal (dry contact) or via RS485 communication;
- use of a minimum number of cables.
| Size | innings, m3 /h | pressure, m | electric motor power, kW | nominal current, A | weight, kg (not less than) |
| Pumped medium - petroleum products with a temperature of - 40…+ 50 °C, viscosity up to 100 cSt with a solid inclusion content of no more than 0.2% and a size of no more than 0.2 mm: | |||||
| KM 65-50-160E-m | 25 | 32 | 5.5 | 10.93 | 300 |
| KM 65-50-160E-a-m | 25 | 26 | 5.5 | 10.93 | 300 |
| KM 65-50-160E-b-m | 25 | 20 | 5.5 | 10.93 | 300 |
| KM 80-65-140E-m | 45 | 15 | 3 | 6.1 | 300 |
| KM 80-65-160E-m | 50 | 32 | 7.5 | 14.4 | 300 |
| KM 80-65-160E-a-m | 50 | 26 | 7.5 | 14.4 | 300 |
| KM 80-65-160E-b-m | 50 | 20 | 7.5 | 14.4 | 300 |
| KM 80-50-200E-m | 50 | 50 | 15 | 28.8 | 300 |
| KM 80-50-200E-a-m | 50 | 40 | 11 | 21.1 | 300 |
| KM 100-80-170E-m | 100 | 25 | 11 | 21.1 | 350 |
| KM 100-80-160E-m | 100 | 32 | 15 | 28.8 | 350 |
| To 150-100-200E-m | 200 | 40 | 37 | 68 | 600 |
| To 150-100-200E-m | 150 | 50 | 30 | 59.5 | 550 |
| To 150-100-200E-a-m | 150 | 40 | 30 | 59.5 | 650 |
| To 200-150-250E-m | 320 | 50 | 75 | 132 | 900 |
| KMS 100-80-180E | 65 | 35 | 15 | 28.8 | 350 |
| KMS 100-80-180E-a | 40 | 35 | 11 | 21.1 | 350 |
| The pumped medium is clean liquids without mechanical inclusions: water, gasoline, kerosene, diesel fuel, alcohol and other neutral liquids, with a viscosity of no more than 2 10-5 m2 /s, a temperature from -40 to +50°C and a density of no more than 1000 kg/ m3 . | |||||
| ASVN-80A-E | 38 | 26 | 11 | 22.5 | 350 |
| Pumped medium - petroleum products (oil, petroleum, fuel oil, OMTI oil) without mechanical impurities | |||||
| W 80-2.5-37.5/2.5 | 37.5 | 25 | 11 | 21.1 | 400 |
| Working environment: air, non-toxic gases and vapors insoluble in the working fluid. Working fluid: water and other liquids similar to water in their characteristics. Designed to create a vacuum in closed devices | |||||
| VVN 1-12 | 12.2 | - | 30 | 60 | 1500 |
Documentation:
JSC Prompribor
Markets: РФ, СНГ, Европа
Locations: 303858, Oryol region, Livny, Industrialnaya st., 2P
Main Products/Services: Equipment for oil depots
Registration: 303858, Oryol region, Livny, Industrialnaya st., 2P
