Wheeled Tractor "T-360" class 5 TC
(Equipment / Material)
Model Number: Т-360
Condition: New
Location or Storage Country: Russia
Service Engineering Support: Yes
Warranty: Yes
Price: Call for price
Description:
Purpose and application: Working with wide-grip seeding complexes with pneumatic seeding and seeding complex fan drive from the hydraulic system. Primary soil cultivation with reversible ploughs, heavy cultivators, disc harrows and combined implements. Pre-sowing soil preparation. Stubble and cultivated soil harrowing with wide-grip implements. Transport work with trailers and semi-trailers with a lifting capacity of 20-25 tons. Working with seed loaders and grain reloaders, spreaders of fertilizers and mineral materials with a lifting capacity of up to 25 tons. Description and features: The tractor was created specifically for Russian conditions, characterized by heavy soil, harsh climate, unstable fuel quality, remoteness of farms from service points. The power of the tractor ensures its operation with high-performance agricultural machinery - seeding complexes, high-speed cultivators, disc harrows and wide-grip implements. Wide possibilities of combination with domestic and foreign equipment. High productivity, excellent maneuverability and cross-country ability. Highly comfortable cabin, favorable and safe working conditions. Reliable safety frame. Capacious fuel tank for 12-14 hours of operation without refueling, ensuring work without loss of time. Simplicity and reliability of design. Affordable prices for spare parts and service.
Overview:
Tractor | T-360 |
Engine | Cummins, KAMAZ (Euro 2 and Euro 3) |
Nominal power, kW | 205-250 |
Nominal torque, Nm | 1500 (Euro 2) ÷ 1900 (Euro 3) |
Transmission and number of gears. | 18 or 20 forward gears and 4 reverse gears. |
Forward speed range, km/h | 2.4 - 48.2 |
Traction force, kN (kgf) (nom-max) | 50-60 (5000-6000) |
Tires | Front 520/85R38. Rear 30.5R32 |
Attachment device | Towing hook. 3-point |
Base, mm | 3420 |
Track, mm | 1956 |

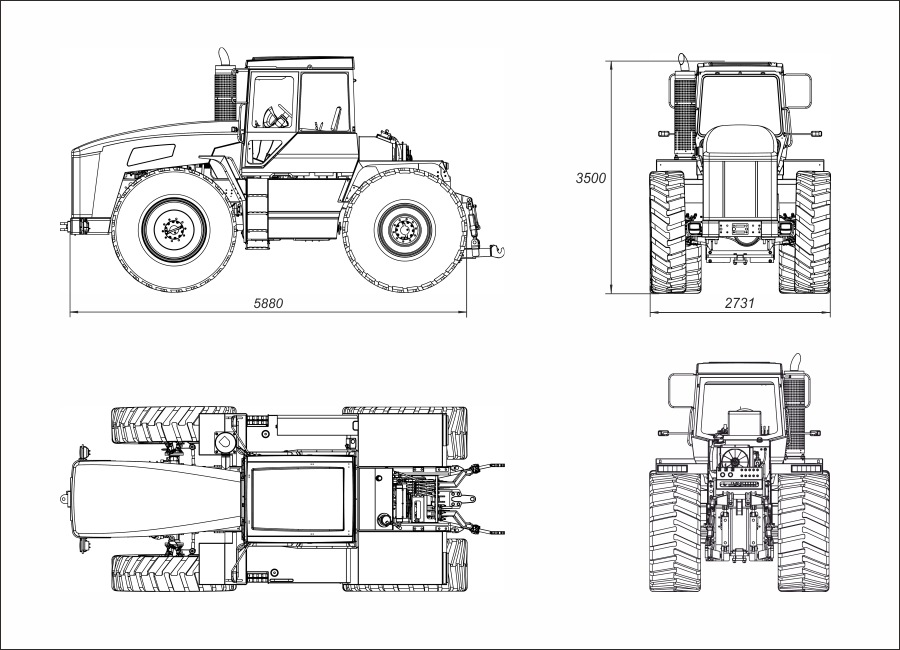

Dimensions, mm LxWxH on the roof | 5900/2600/3450 |
Ground clearance, mm | 600 |
Operating weight, kg | 11,500 |
Design advantages:
- Effective locking differentials of driving axles, planetary wheel reduction gears, terrain following, sprung front axle with shock absorber
- Reliable ZF gearbox with increased service life ensures optimum speed
- The microclimate is maintained by an air conditioner and a powerful heater.
- Use of high-power engines 205 (275) kW (hp) and 250 (335) kW (hp)
- Can be used for transport work with trailers and semi-trailers with a lifting capacity of up to 20 tons at speeds of up to 40 km/h.
- Electromagnetic fan drive clutch reduces fuel consumption and ensures optimum engine temperature
- An efficient air filter with a multi-cyclone pre-cleaner increases the service life of the cartridge filter by 5-6 times
- The use of larger wheels reduces the specific pressure on the soil, increases the yield of cultivated crops, and increases the load-bearing capacity.
- The combined hydraulic system with a proportional 5-section hydraulic distributor and a hydraulic tank allows parallel control of several hydraulic actuators, regulating the oil flow
- Bosch high-performance hydraulic systems with LS control provide drive for hydraulic motors of seeding complex fans
- Adjustable axial piston pump, 5-section distributor, 4 pairs of free outlets (hydraulic lines) with flow regulation, free drain and drainage lines. Maximum pump capacity 180 l/min
